Phosphorescent Pigments

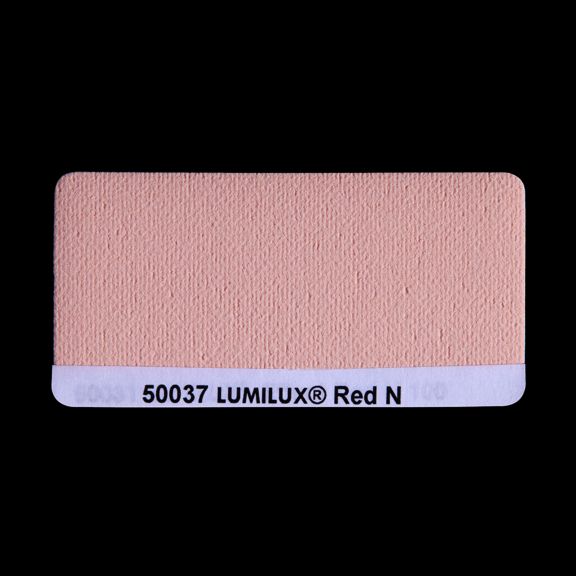

Lumilux® Effect Red N (50037)
Main use: long afterglow plastic sheets, paints, injection molding
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Lumilux N-series products are phosphorescent pigments that store energy when exposed to the sun or an artificial light source, and emit light long after the source has been removed. They are zinc sulfide-based, and meet UL and CE safety standards.
Specifications
General Information
- Application
- Ink
- Paint
- Plastic
- Compatibility
- Insoluble in alkalies and decomposed by acids and water
- Maximum Particle Size
- 40, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Typical Uses
- Solvent-based paints and inks
- Thermoplastics
- Thermosetting plastics
Physical Properties
- Brightness
- 0.3 after 60 minutes
- 12.5 after 5 minutes
- 4.8 after 10 minutes
- Chemical Composition
- CaS: Eu, Tm
- Color
- Pinkish
- Density
- 2.5 g/cm3
- Luminance DIN 67510-1
- 0.3 mcd/m2 after 60 minutes
- 12.5 mcd/m2 after 5 minutes
- 4.8 mcd/m2 after 10 minutes
- Odor
- Sulfur
- Particle Size Distribution
- < 40 µm, PSD50
- pH
- 12 of a waterbased slurry

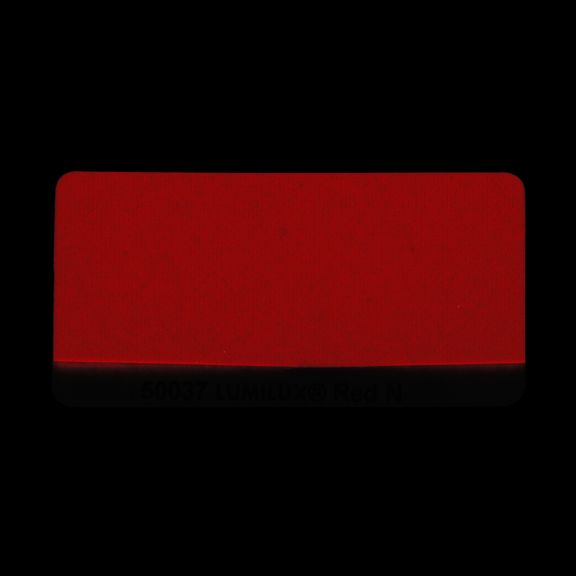

- Phosphorescence Color
- Red
- Physical Form
- Powder
- Screen Analysis
- <0.5% oversized particles on 100 μm testing screen
- Solubility in Water
- Decomposes quickly in water liberating toxic hydronene sulfide
Safety Information
- Chemical Stability
- Decomposes quickly in water liberating toxic hydronene sulfide
- Incompatible Materials
- Acids
- Humidity
- Water
General Information
- Application
- Ink
- Paint
- Plastic
- Compatibility
- Insoluble in alkalies and decomposed by acids and water
- Maximum Particle Size
- 40, PSD50
- Particle Texture/Size
- Coarse (D50 30 - 40 µm)
- Typical Uses
- Solvent-based paints and inks
- Thermoplastics
- Thermosetting plastics
Physical Properties
- Brightness
- 0.3 after 60 minutes
- 12.5 after 5 minutes
- 4.8 after 10 minutes
- Chemical Composition
- CaS: Eu, Tm
- Color
- Pinkish
- Density
- 2.5 g/cm3
- Luminance DIN 67510-1
- 0.3 mcd/m2 after 60 minutes
- 12.5 mcd/m2 after 5 minutes
- 4.8 mcd/m2 after 10 minutes
- Odor
- Sulfur
- Particle Size Distribution
- < 40 µm, PSD50
- pH
- 12 of a waterbased slurry
- Phosphorescence Color
- Red
- Physical Form
- Powder
- Screen Analysis
- <0.5% oversized particles on 100 μm testing screen
- Solubility in Water
- Decomposes quickly in water liberating toxic hydronene sulfide
Safety Information
- Chemical Stability
- Decomposes quickly in water liberating toxic hydronene sulfide
- Incompatible Materials
- Acids
- Humidity
- Water
- Application : Ink|Paint|Plastic
- Maximum Particle Size : 40, PSD50
- Particle Texture/Size : Coarse (D50 30 - 40 µm)
- Compatibility : Insoluble in alkalies and decomposed by acids and water
- Typical Uses : Solvent-based paints and inks|Thermoplastics|Thermosetting plastics
- Color : Pinkish
- pH : 12 of a waterbased slurry
- Particle Size Distribution : < 40 µm, PSD50
- Density : 2.5 g/cm3
- Brightness : 0.3 after 60 minutes|12.5 after 5 minutes|4.8 after 10 minutes
- Phosphorescence Color : Red
- Solubility in Water : Decomposes quickly in water liberating toxic hydronene sulfide
- Screen Analysis : <0.5% oversized particles on 100 μm testing screen
- Chemical Composition : CaS: Eu, Tm
- Physical Form : Powder
- Luminance DIN 67510-1 : 0.3 mcd/m2 after 60 minutes|12.5 mcd/m2 after 5 minutes|4.8 mcd/m2 after 10 minutes
- Odor : Sulfur
- Incompatible Materials : Acids|Humidity|Water
- Chemical Stability : Decomposes quickly in water liberating toxic hydronene sulfide
