Phosphorescent Pigments

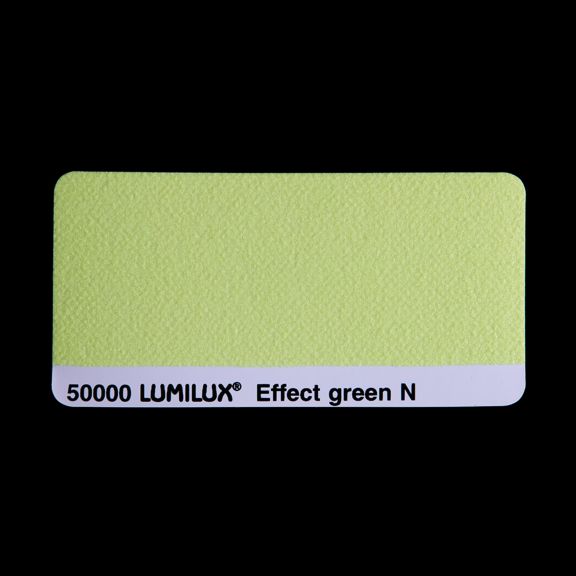

Lumilux® Effect Green N (50000)

Main use: Afterglow plastic sheets, screen printing inks, injection molding

Overview
Lumilux N-series products are phosphorescent pigments that store energy when exposed to the sun or an artificial light source, and emit light long after the source has been removed. They are zinc sulfide-based, and meet UL and CE safety standards.
Specifications

General Information

  • Application
    • Ink
    • Plastic
  • Compatibility
    • Alkalies
    • Insoluble in water
    • Organic solvents and decomposed by acids
  • Maximum Particle Size
    • 46, PSD50
  • Particle Texture/Size
    • Coarse (D50 30 - 40 µm)
  • Product Type
    • Luminescent/Phosphorescent Pigments Degrees Celsius
  • Typical Uses
    • Ceramics
    • Enamel
    • Solvent-based paints and inks
    • Thermoplastics
    • Thermosetting plastics
    • Water-based paints

Physical Properties

  • Brightness
    • 3.1 after 60 minutes
    • 66 after 5 minutes
    • Min 97% after 10 min
  • Chemical Composition
    • ZnS: Cu
  • Color
    • Yellow-green
  • Density
    • 4.1 g/cm3
  • Luminance DIN 67510-1
    • 28 mcd/m2 after 10 min
    • 3.1 mcd/m2 after 60 minutes
    • 66 mcd/m2 after 5 minutes
  • Particle Size Distribution
    • < 46 μm, PSD50
  • pH
    • >11 of a waterbased slurry
  • Phosphorescence Color
    • Green
  • Physical Form
    • Powder
  • Screen Analysis
    • 1% oversized particles on 125 μm testing screen
  • Solubility
    • Insoluble
  • Solubility in Water
    • Insoluble
  • Typical Afterglow Brightness
    • Min 97% after 10 min

Safety Information

  • Incompatible Materials
    • Strong acids

General Information

  • Application
    • Ink
    • Plastic
  • Compatibility
    • Alkalies
    • Insoluble in water
    • Organic solvents and decomposed by acids
  • Maximum Particle Size
    • 46, PSD50
  • Particle Texture/Size
    • Coarse (D50 30 - 40 µm)
  • Product Type
    • Luminescent/Phosphorescent Pigments Degrees Celsius
  • Typical Uses
    • Ceramics
    • Enamel
    • Solvent-based paints and inks
    • Thermoplastics
    • Thermosetting plastics
    • Water-based paints

Physical Properties

  • Brightness
    • 3.1 after 60 minutes
    • 66 after 5 minutes
    • Min 97% after 10 min
  • Chemical Composition
    • ZnS: Cu
  • Color
    • Yellow-green
  • Density
    • 4.1 g/cm3
  • Luminance DIN 67510-1
    • 28 mcd/m2 after 10 min
    • 3.1 mcd/m2 after 60 minutes
    • 66 mcd/m2 after 5 minutes
  • Particle Size Distribution
    • < 46 μm, PSD50
  • pH
    • >11 of a waterbased slurry
  • Phosphorescence Color
    • Green
  • Physical Form
    • Powder
  • Screen Analysis
    • 1% oversized particles on 125 μm testing screen
  • Solubility
    • Insoluble
  • Solubility in Water
    • Insoluble
  • Typical Afterglow Brightness
    • Min 97% after 10 min

Safety Information

  • Incompatible Materials
    • Strong acids
  • Compatibility : Alkalies|Insoluble in water|Organic solvents and decomposed by acids
  • Particle Texture/Size : Coarse (D50 30 - 40 µm)
  • Typical Uses : Ceramics|Enamel|Solvent-based paints and inks|Thermoplastics|Thermosetting plastics|Water-based paints
  • Maximum Particle Size : 46, PSD50
  • Product Type : Luminescent/Phosphorescent Pigments Degrees Celsius
  • Application : Ink|Plastic
  • Luminance DIN 67510-1 : 28 mcd/m2 after 10 min|3.1 mcd/m2 after 60 minutes|66 mcd/m2 after 5 minutes
  • Typical Afterglow Brightness : Min 97% after 10 min
  • Brightness : 3.1 after 60 minutes|66 after 5 minutes|Min 97% after 10 min
  • pH : >11 of a waterbased slurry
  • Phosphorescence Color : Green
  • Chemical Composition : ZnS: Cu
  • Screen Analysis : 1% oversized particles on 125 μm testing screen
  • Solubility in Water : Insoluble
  • Solubility : Insoluble
  • Particle Size Distribution : < 46 μm, PSD50
  • Density : 4.1 g/cm3
  • Color : Yellow-green
  • Physical Form : Powder
  • Incompatible Materials : Strong acids
