Phase Change Materials

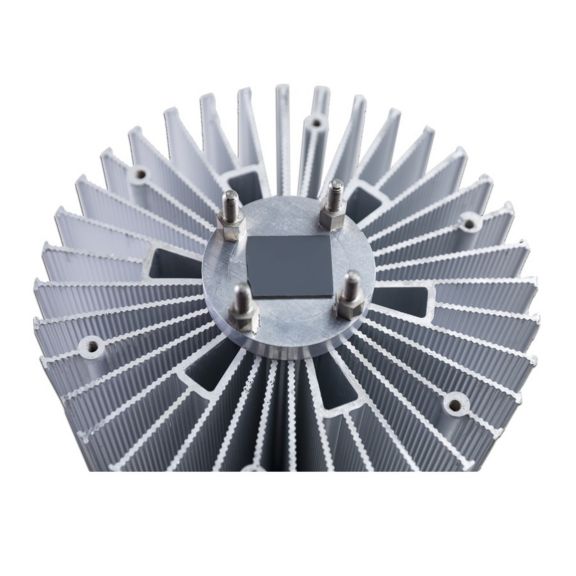

PTM7900
PTM7900 is a Phase Change Pad with a Thermal Impedance of 0.04 - 0.08 (°C cm²/w), Thermal Conductivity of 8 (w/mk) and Specific Gravity of 2.8 (g/cm³)
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
PTM7900 is designed to minimize thermal resistance at interfaces and maintain extremely stable performance through reliability testing required for long product life applications. It has stable thermal impedance across accelerated aging tests and does not display bleeding, pumping, or flow out.
PTM7900 has a Thermal conductivity of 8.0 (W/m·K) depending on the bondline thickness. It is based on a robust polymer PCM structure that exhibits excellent wetting properties during typical operating temperature ranges, resulting in very low surface contact resistance. This proprietary material provides superior reliability and maintains low thermal impedance (0.04 - 0.08 OC cm2/w), making it desirable for high-performance integrated circuit devices. It has been qualified by major GPU and cooling solution manufacturers across the globe.
PTM7900 has a Thermal conductivity of 8.0 (W/m·K) depending on the bondline thickness. It is based on a robust polymer PCM structure that exhibits excellent wetting properties during typical operating temperature ranges, resulting in very low surface contact resistance. This proprietary material provides superior reliability and maintains low thermal impedance (0.04 - 0.08 OC cm2/w), making it desirable for high-performance integrated circuit devices. It has been qualified by major GPU and cooling solution manufacturers across the globe.
Specifications
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months Year
- Specific Gravity
- 2.8 g/cm3, Test Method ASTM D374
- Thickness (mm)
- 0.2
- 0.25
- 0.3
- 0.4
- 0.5
- Viscosity
- N/A
- Liner Color
- Light Blue
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 8.0 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.04-0.08 at no shim °C cm²/w, Test Method ASTM D5470 Modified
General Information
- Application
- Base Station
- CPU
- GPU
- Laser
- Memory
- Optical
- Switch
- Thin Bondline
- Transceiver
- Key Features
- High Reliability
- Low TI
- Sub-segment
- Networks
- Notebook
- PC
- Projector
- Server
- Tablet
- Industry
- Automotive
- Consumer Electronics
- Technology and Telecommunications
Other
- Other Notes
- Pads available in sheets and rolls
Physical Properties
- Bond-Line Thickness (BLT)
- 0.038
- Color
- Grey
- Shelf Life
- 12 months Year
- Specific Gravity
- 2.8 g/cm3, Test Method ASTM D374
- Thickness (mm)
- 0.2
- 0.25
- 0.3
- 0.4
- 0.5
- Viscosity
- N/A
- Liner Color
- Light Blue
- Format
- Pad
Thermal Properties
- Thermal Conductivity
- 8.0 W/m-K, Test Method ASTM D5470
- Thermal Impedance
- 0.04-0.08 at no shim °C cm²/w, Test Method ASTM D5470 Modified
General Information
- Application
- Base Station
- CPU
- GPU
- Laser
- Memory
- Optical
- Switch
- Thin Bondline
- Transceiver
- Key Features
- High Reliability
- Low TI
- Sub-segment
- Networks
- Notebook
- PC
- Projector
- Server
- Tablet
- Industry
- Automotive
- Consumer Electronics
- Technology and Telecommunications
Other
- Other Notes
- Pads available in sheets and rolls
- Viscosity : N/A
- Thickness (mm) : 0.2|0.25|0.3|0.4|0.5
- Thermal Impedance : 0.04-0.08 at no shim °C cm²/w, Test Method ASTM D5470 Modified
- Thermal Conductivity : 8.0 W/m-K, Test Method ASTM D5470
- Specific Gravity : 2.8 g/cm3, Test Method ASTM D374
- Shelf Life : 12 months Year
- Liner Color : Light Blue
- Format : Pad
- Color : Grey
- Bond-Line Thickness (BLT) : 0.038
- Application : Base Station|CPU|GPU|Laser|Memory|Optical|Switch|Thin Bondline|Transceiver
- Sub-segment : Networks|Notebook|PC|Projector|Server|Tablet
- Key Features : High Reliability|Low TI
- Industry : Automotive|Consumer Electronics|Technology and Telecommunications
- Other Notes : Pads available in sheets and rolls
